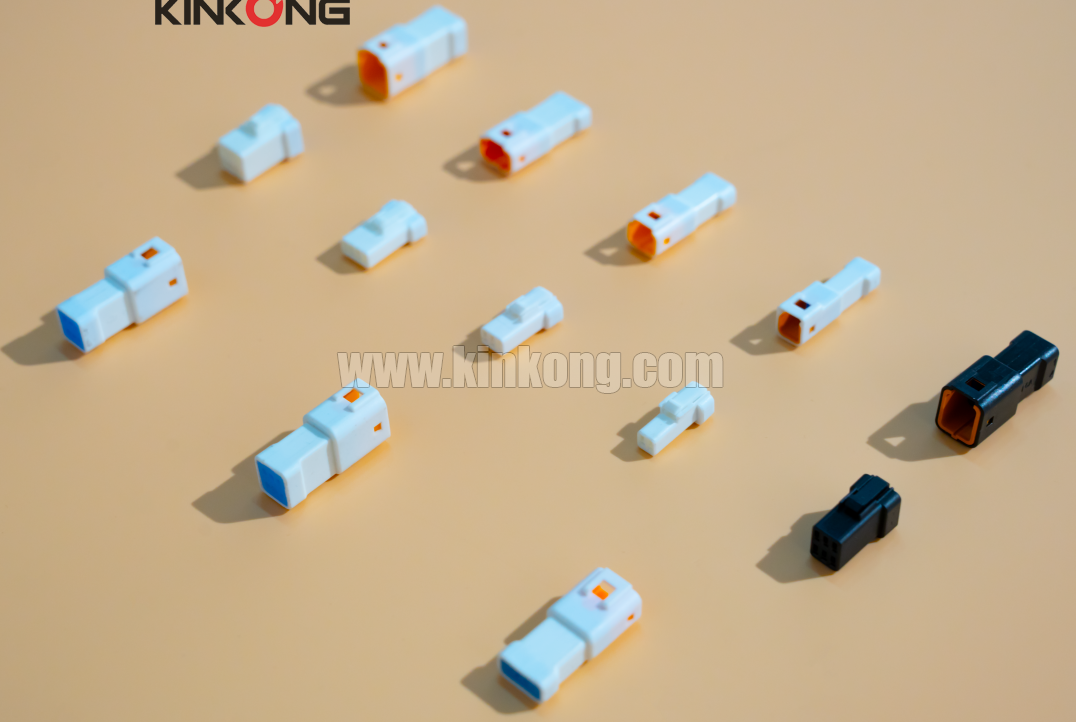

This JWPF connector can be used for the place of which especially waterproof is required.
· Waterproof performance
· Contained seal ring
· Solid rubber seal
· Double-spring construction
· Housing-to-terminal locks
· Inner-housing lock
· Current rating: 3A AC/DC (AWG #22)
· Voltage rating: 100V AC/DC
· Temperature range: -55℃ to +85℃
(including temperature rise in applying electrical current)
· Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 15 mΩ max.
· Insulation resistance: 1,000 MΩ min.
Withstanding voltage: 1,000 VAC/minute
· Applicable wire: AWG #26 to #22
0.13 to 0.33 mm2
Insulation O.D./ 1.4 to 1.7 mm
Our AMPSEAL 16 connectors are used in harsh environment applications where the connectors must serve as dust and water-resistant, acting as a protective seal to make driving safer and more reliable.
Our connectors stay firm and secure in extreme environments.
We employ foreign equipment to guarantee connection for various brands and models.
Over 10 years’ partnership with upstream suppliers.
Our engineers will carefully assess the applicability of your customization needs and work with designers to generate practical customization solutions that will bring your brand superb product quality and make your promotion simple and advanced.
